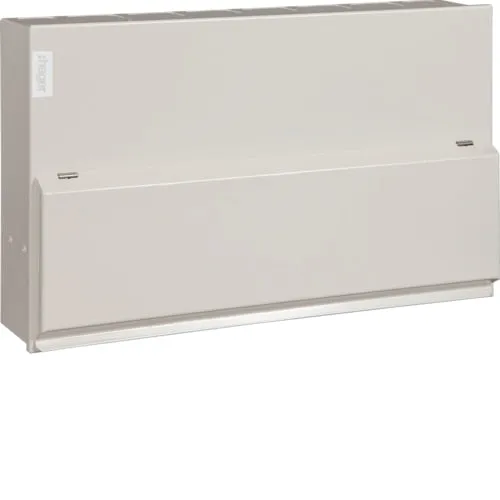

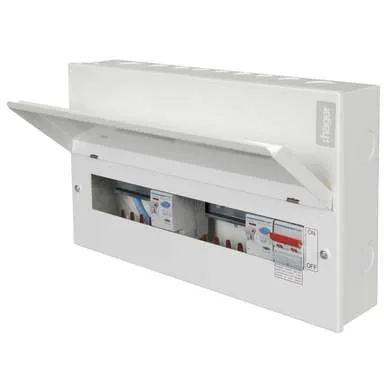

Hager 6 6 Dual 100A RCD Split Load Metal Clad Consumer Unit with Round Knockouts

• 6 6 way split load consumer unit
• Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
• Selection of round knockouts
• Design 10 consumer units come with top, bottom, rear knockouts and a meter tail cable entry plate
• Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
• Design 10 board has ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
• Conforms to BS EN 61439-3 Including Annex ZB
• Board Configuration 6 6
• Cable Entry Selection of Round Knockouts
• Colour White
• Current Rating 100A
• Depth 100mm
• Dimensions (H)246 mm x (W)406 mm x (D)100 mm
• Door Type Top Hinged
• Guarantee 2 Years
• Incoming Device 100A Isolator

• Incoming Terminal Capacity 50mm²
• Knockouts Round
• Material Steel
• Mounting Surface
• Number of Modules 18
• Number of Outgoing Ways 12
• Packaging Types Each
• Product Range Design 10
• Rcd Rating 100A
• Rcd Type A
• Standards BS EN 61439-3
• Surge Protection Fitted No
• Surge Protection Ready No
• Tripping Sensitivity 30mA
• Voltage Rating 230V

• Weight 4.85kg
