Product Details
＋
Description

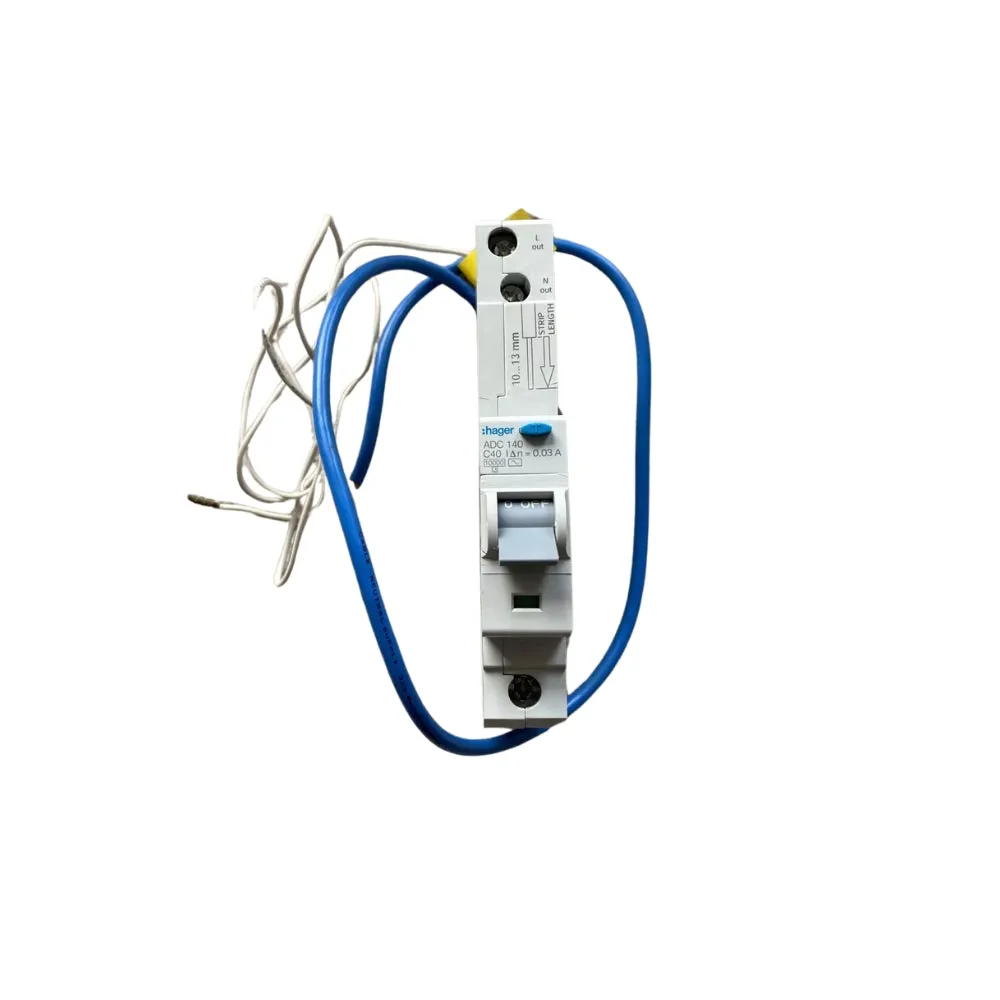

The Hager ADC140 is a Single Pole, 40A, 230V, 30mA Type C RCBO. It offers protection against earth leakage as well as overloads and short circuits. It has an insulated DIN clip so it can be mounted in the board. It also has a positive indicator which shows whether it is ON or OFF.
Dimensions: 116x18x70mm
| Circuit Breakers|Description|Product | Circuit Breaker |
| Circuit Breakers|Description|Type (Cable Baskets) | RCBO |
| Circuit Breakers|Description|Qualifier | |
| Circuit Breakers|Features|Pole Configuration | SP |
| Circuit Breakers|Features|Mounting | DIN Rail |
| Circuit Breakers|Features|Trip Type | Type C |
| Circuit Breakers|Features|Short Circuit Rating | 10 kA |
| Circuit Breakers|Features|Sensitivity | 30 mA |
| Circuit Breakers|Dimensions|Cable Capacity | 16 (Rigid) 10 (Flexible) Sq mm |
| Circuit Breakers|Dimensions|Width | 17.5 mm |
| Circuit Breakers|Technical Data|Current Rating | 40 A |
| Circuit Breakers|Technical Data|Voltage | 127 | 230 V |
| Circuit Breakers|General|Standards | BS EN 61009 IEC 1009 |
| Dimension | 40A 30mA 10kA |
| Circuit Breakers|Description|Type | RCBO |
| Manufacturer | Hager Ltd - Energy Distribution |
