Description

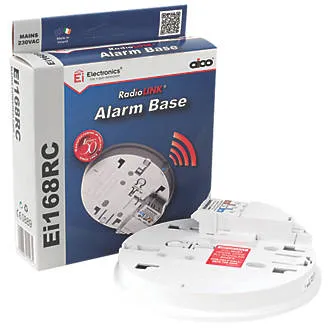

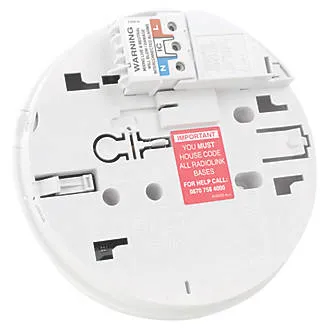

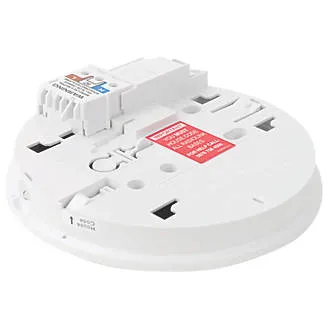

The Ei168RC RadioLINK Base is an easi-fit mounting plate with built-in RadioLINK. It provides wireless interconnection between 140RC Series alarms, i.e. when one alarm is triggered, all alarms in the system sound.

Add this to a 140RC Series alarm for RadioLINK wireless interconnection

Mains powered with Rechargeable Lithium Back-up

Eliminates tricky wiring runs

Compatible with other Aico wireless interconnection products

5 year guarantee

Technical

RF Frequency (MHz) - 868.499

Indicators Blue - RF transmission

Voltage Type - AC

Power Consumption (W) - 2.4

RF Range (m) >100 in free air

Supply Voltage (V) 230

Battery Type Lithium rechargeable

Dimensions & Weights

Depth (mm) 43

Height (mm) 154

Width (mm) 153

Product weight (kg) 0.176

Packaged weight (kg) 0.233

Approvals & Warranty

Warranty 5 Years

EAN Number 5099383004281

Environmental

Humidity Range (%) 15-95

Temperature Range (°C)  -10 to 40
